Class SignRegularizedWithPolynomial

• Defined in File RegularizedSign.hxx

Inheritance Relationships

Base Type

• public Mechatronix::RegularizedBase (Class RegularizedBase)

Class Documentation

class Mechatronix::SignRegularizedWithPolynomial : public Mechatronix::RegularizedBase

Sign function smoothed.

Inizialization

inline explicit SignRegularizedWithPolynomial()

virtual void setup(GenericContainer const &gc) override

void setup(real_type h)

Compute \( \kappa \) for regularized sign from h

inline void update_h(real_type h)

Evaluate

@]

virtual real_type operator()(real_type x) const override

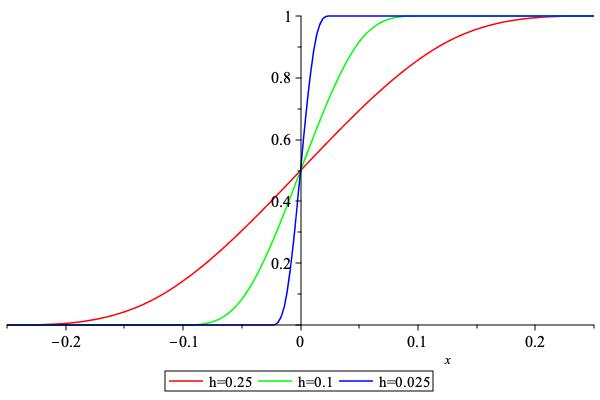

Evaluate regularized sign

\[\begin{split} \mathrm{sign}(x) = \begin{cases} 0 & x\leq -h \\[1em] \frac{2}{3}\displaystyle\frac{(x+h)^3}{h^3} & x\leq -h/2\\[1em] \frac{1}{6}\displaystyle\frac{3h^3+6\,h^2x-4\,x^3}{h^3} & x\leq h/2 \\[1em] \frac{1}{3}\displaystyle\frac{h^3+6\,h^2x-6\,hx^2+2\,x^3}{h^3} & x\leq h\\[1em] 1 & h<x \end{cases} \end{split}\]

virtual real_type D(real_type x) const override

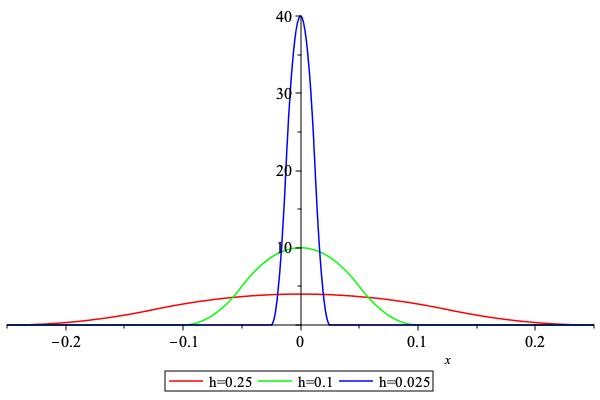

Evaluate regularized sign first derivarive

virtual real_type DD(real_type x) const override

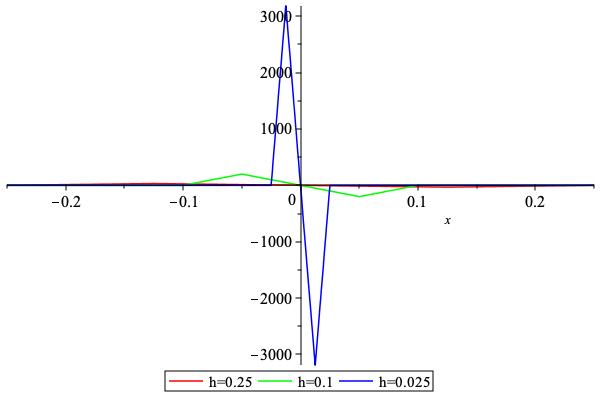

Evaluate regularized sign second derivative

Info

virtual string info() const override
